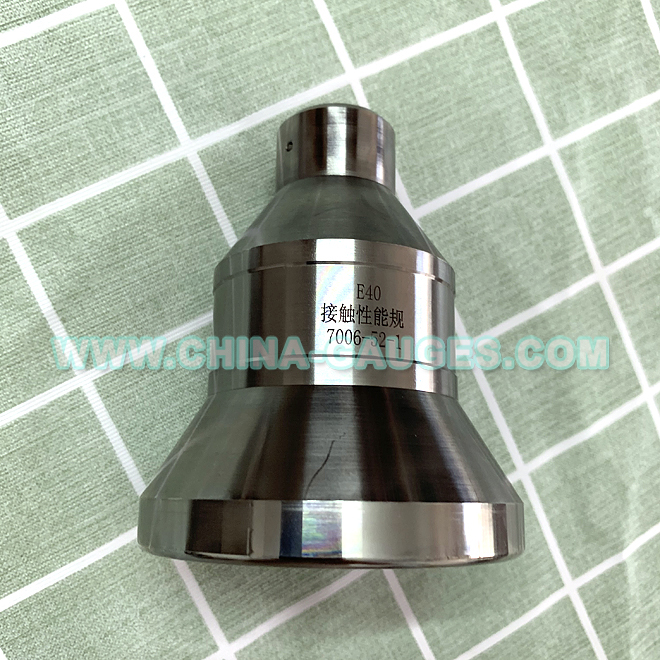

7006-52-1 E40 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making

E40 Gauges

7006-52-1 E40 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making

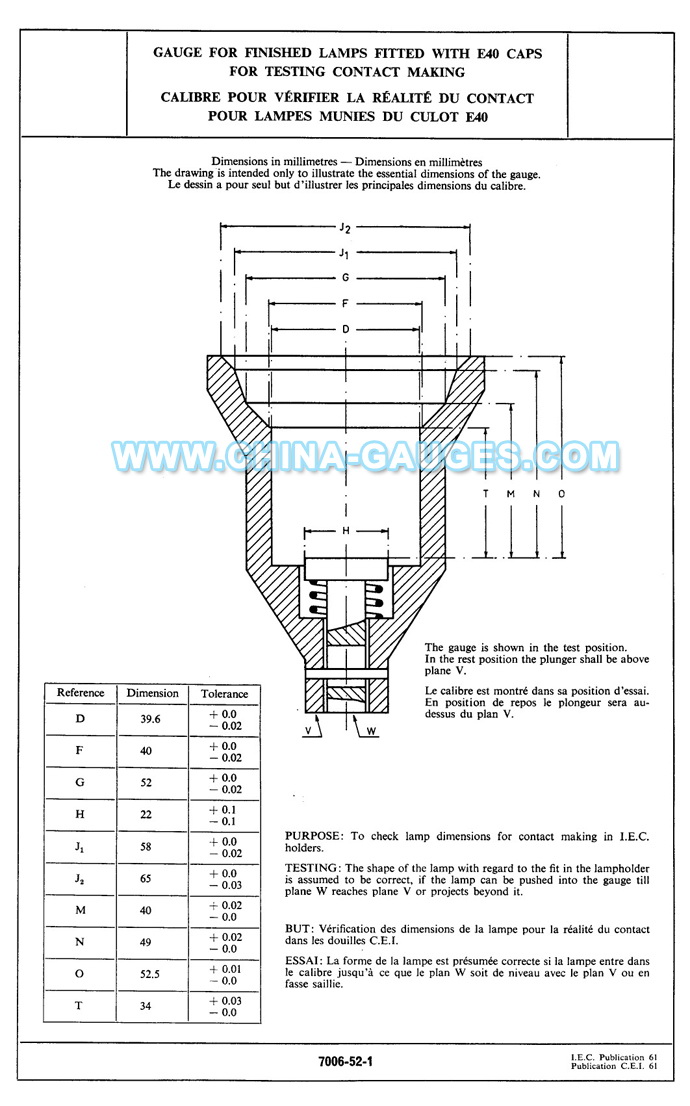

The gauge is shown in the test position.

In the rest position the plunger shall be above plane V.

Purpose:
To check lamp dimensions for contact making in I.E.C holders.

Testing:
The shape of the lamp with regard to the fit in the lampholder is assumed to be conrrect, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
