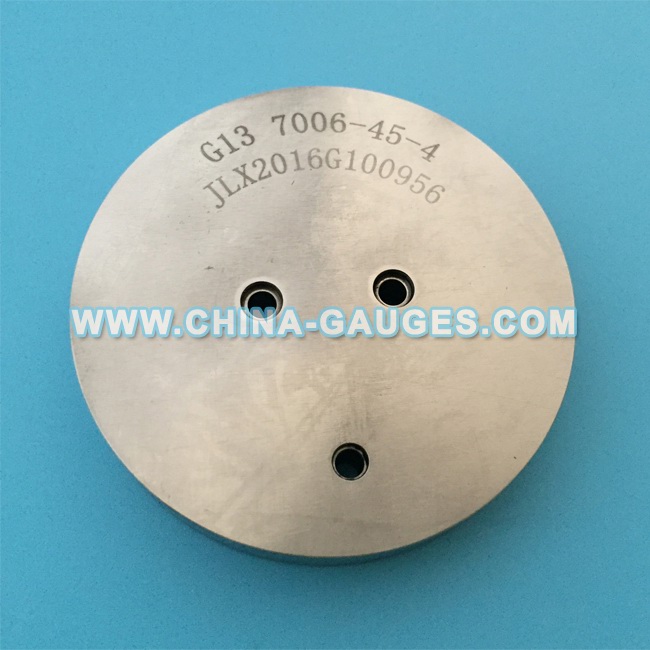

IEC 60061-3 Go No Go Gauge for G13 Lamp Caps 7006-45-4

G13 Gauges

IEC 60061-3 Go No Go Gauge for G13 Lamp Caps 7006-45-4

Purpose:

To check dimensions E max., F min., F max. and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G13 on finished lamps.

Testing:

The pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact.

In this position the ends of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y.

Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.

Go Gauge for Bi-Pin Cap on Finished Lamp G13
