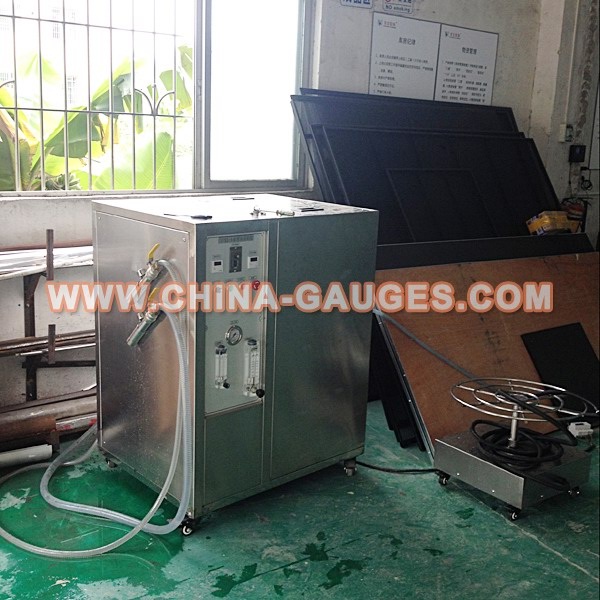

IEC60529 IPX5 IPX6 Tester

Other Test Apparatus

Test standard:

Outdoor waterproof testing equipment is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX5/6.

Application:

IPX5 IPX6 Rain Spray Test Equipment simulates the water drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Features:

1. Split type structure, safe and reliable, equipment rack and sample turntable all by the high quality aluminum alloy item No. and SUS304# stainless steel plate, ensures a long time use does not rust.

2. Turntable electrical part fully sealed to prevent water leakage, turntable use speed motor, speed in the standard range can be adjusted, and can control the forward and reverse rotation (suitable for the sample with the electric test).

3. Comes with a water tank, the water tank installed with the water level float valve automatically control the water, and there is a low level alarm detection, effectively prevent the water pump dry and turn damaged.

4. Electrical components used in all such as LG, Omron and other imported brands, wiring craft accord with the requirements of the national standard, panel layout is reasonable, firm connection and marked clearly.

5. Test time can be set 0-999M adjustable, the sample power with power time control function, IPX5 and IPX6 test a key conversion, a key to start, automatic stop, simple intelligence.

6. Spray nozzle: according to the relevant standard requirements of IEC60529

IPX5 IPX6

Technical parameters:

Equipment parameters
Item No.	LX-ipx56A
Control system	(key type) time relay + switch
Exterior chamber size	W1026D776H1345 (mm) (Contain castor)
Water storage tank volume	420L, Size700×500×1200(mm), SUS304
IPX5 Spray nozzle diameter	6.3mm
IPX6 Spray nozzle diameter	12.5mm
IPX5 Water flow	12.5±0.625 L/min
IPX6 Water flow	100±5 L/min
Water pressure(Mpa)	adjustable
Water flow control	Valve for water flow regulation and shut off.
Space from nozzle to sample	2.5m-3m
Fixed method of spray gun	Hand Held
Water pump	Stainless steel multistage pump
Waterway material	Stainless steel + PPR pipe welding
Rotary table size	¢600 mm
Rotary table power supply	AC220V
Material	SUS304
Protection device	Leakage, water shortage, short circuit
Power supply	380V
Power requirements	3 KW
According to	IEC60529:1989+A1:1999, GB4208, GB7000.(IPX5, IPX6)
