IEC Test Probe


Specification:

Children Test Finger / Children Test Finger 19

1. According to: IEC 61032-1997 and UL

2. Children Test Finger 19 Probe is the necessary appliance to prevent electic shock for household and similar electrical problem


Technical Parameters:

1. Knurled Finger Diameter: 5.6mm

2. Knurled Finger Length: 44mm

3. Head Radius: 2.8mm

4. The First Headle Diameter: 25.9mm

5. The First Headle Length: 101.6mm

6. The Second Headle Diameter: 25.4mm

7. The Second Handle Length: 464.3mm

8. Reference Standards: IEC 61032: 1997 Figure 13


Application:

The metal parts of the test probe can not touch the live parts or not close to hazardous parts. plastic dam-board can not be enter. The reference standards are different, please according to related standards on the detailed test. This shows that only based on IEC 61032 & GB16842


Note: Children Test Finger 19 is made of precision stainless steel. lightly put and take when using. and pay attention to maintenance

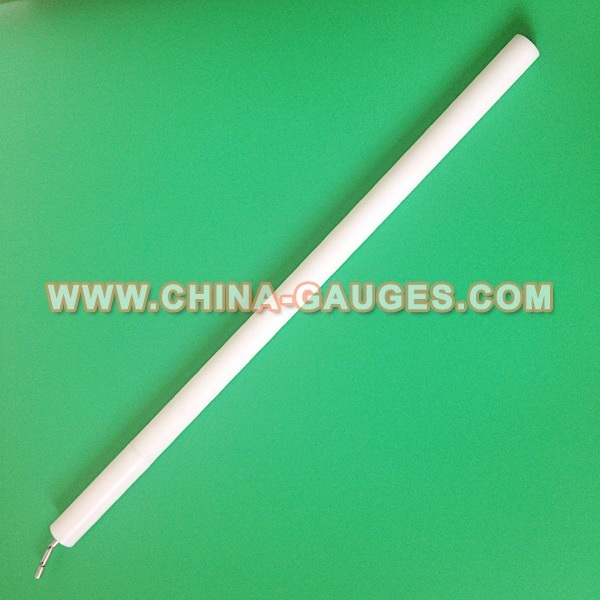

Small finger probe: Ø 5.6mm. Conform to the IEC61032 Test probe 19. This probe is intended to simulate access to hazardous parts by children of 36 months or less. The handle is made of nylon, tip is made of stainless steel.
