Wedge Probe for Testing Document Shredders

IEC Test Probe

1.Specification :

Length : 300mm

Width : 50mm

Bendable Section : 30/30/40mm

Material : Stainless steel

Reference : UL60950 Fig NAF.2 and NAF.3

Distance from probe tip Probe thickness

Distance from probe tip	Probe thickness
0mm	2mm
12mm	4mm
180mm	24mm

2,Appliance:

This product is used for testing access to document shredders. The Jointed Accessibility Wedge Probe is a high precision probe made in exact accordance with UL and IEC standards such as UL60950 Figure NAF2 and NAF3 UL 60950 wedge probe for paper shredders.

The wedge probe is made of solid aluminum to conserve weight yet maintain rigidity. Others maintain that the tip needs to be more rigid, because of the cutting blades. This underscores their lack of knowledge of the requirements as you do not perform the test with the unit energized! No damage can occur to the probe unless the shredder is energized - - in which case there is extreme danger in performing the test! The Shredder Accessibility Probe is intended for testing paper shredders in accordance with Annex NAF of the Standard for Information Technology Equipment, UL60950-1:2006.

3,Note :

1 The thickness of the probe varies linearly, with slope changes at the following points along the probe:

2 Tolerances on the probe measurement values are ±0.127 mm.

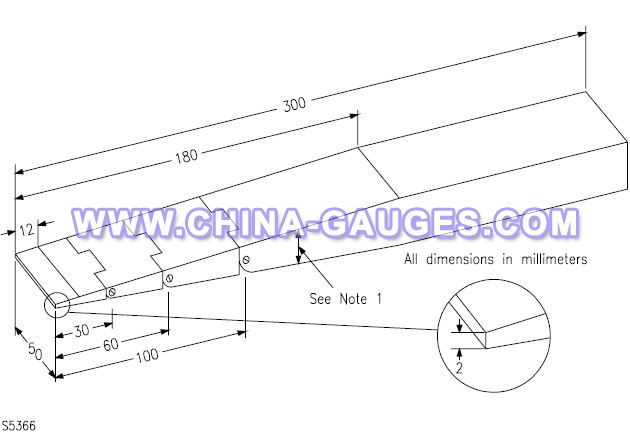

Figure NAF.2 – Accessibility probe/wedge
