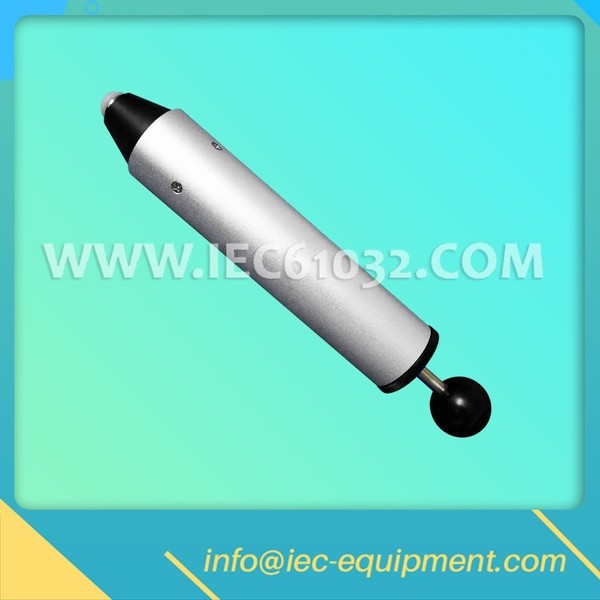

1J Spring Impact Hammer

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60068-2-75
Item No.: LX-IK06
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

Standard: IEC60068-2-75.

Technical parameters:

Length:211mm

Weight:1250g

OD : 50mm

Hammer Weight :60g

Hammer Radius:10mm

The release force of impact: <10N

Impact Components: Including the hit ball handle the hammer ,weight 250g

Hammer head is made from white polyethylene imine first .

Impact Emergy	Error
1.0 J	±0.05J

Application:

Impact hammer are used to check the durability of enclosure for electrical appliance of other electronic product.The Impact Hammer simulates the mechanical impact to test household and similar electrical appliance shell ,lever,handle,knobs,light and other shell to withstand mechanical shocks.
