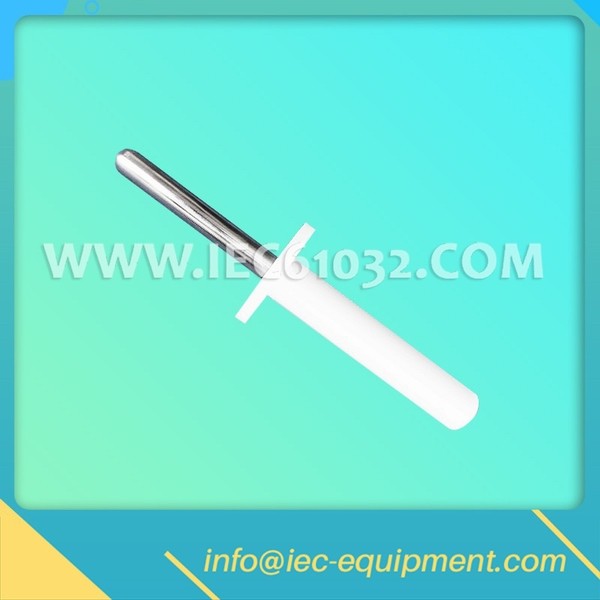

Blunt Probe

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60950-1
Item No.: LX-TD15
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.



Purpose:

Telecom-test probe meets IEC60950 Figure 2C and UL6500 Figure B.1 standards. is for the absolute share TNV circuits information technology to see if they provide sufficient protection.


Contacts of terminals for TNV CIRCUITS which cannot be touched by the test probe figure B.1, are an additional exemption from the requirement for inaccessible TERMINAL contacts.


Apparatus containing input TELECOMMUNICATION NETWORK leads over which ringing voltages are applied to the equipment shall be subjected to Leakage Current due to Ringing Voltage tests per 6.3.4.3 of UL 1950, Third Edition.


Conforms to:

Standard UL6500 Figure B.1 / IEC60950-1 Figure 2C etc.


Technical Parameter:

Test probe diameter: 12mm

Test probe length: 80mm

Baffle plate thickness: 5mm

Baffle plate diameter: 50mm




Figure 2C.jpg
