535g 2inch Steel Sphere of UL Impact Test

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: UL1989
Item No.: LX-B53H
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.


Specifications:
Impact Test Ball 2 Inch
535 grams Weight 50.8 mm Diameter
1.18 pounds Weight 2 inches Diameter

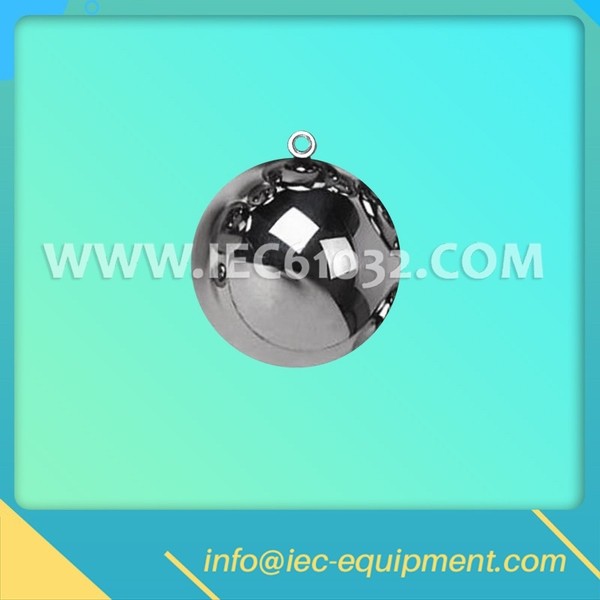

The Impact Test Ball is a specially machined ball to test impact resistance according to International Standards. It is made of chrome-plated steel for durability, and is fitted with an eyelet to facilitate testing for pendulum applications.


According to UL1989, UL1418 and other.



The point of suspension is one inch (25.4 mm) in front of he panel, h is 16.25 inches (412.8 mm). the diameter of the steel sphere is 2 inches (50.8 mm). and the mass of the steel sphere is 1.18 lbs (0.535 kg mass) and it is to hbe released from rest.
