76mm Flat End Test Rod of IEC 60335-2-16

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard:
Item No.: LX-F76
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

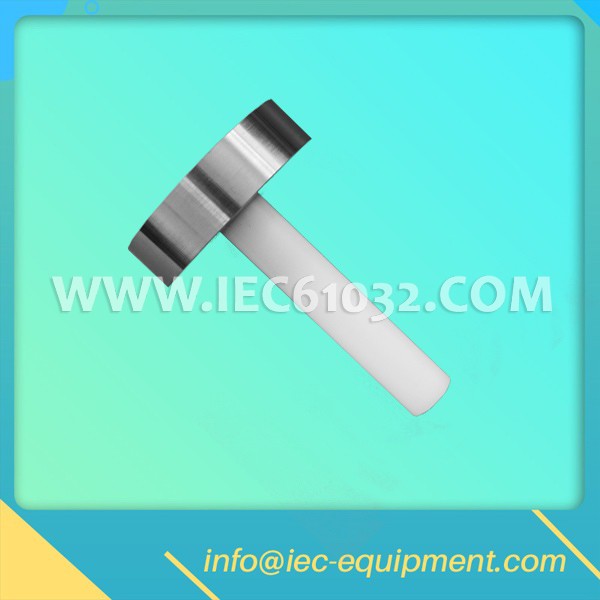

76mm Flat End Test Rod of IEC 60335-2-16


The test probe is designed and manufactured according to the IEC 60335-2-16 clause 22.102. It is used to test concealment of the reset button of a protective device.


Appliance is checked by applying a rod in any direction to touch the protective device which is in off state. The diameter of rod is 76 mm ±0.1mm and it has a flat end. There shall be a distance of at least 1.5mm between the rod and the button. The protective device shall not be operated with the rod and not automatically reset.
