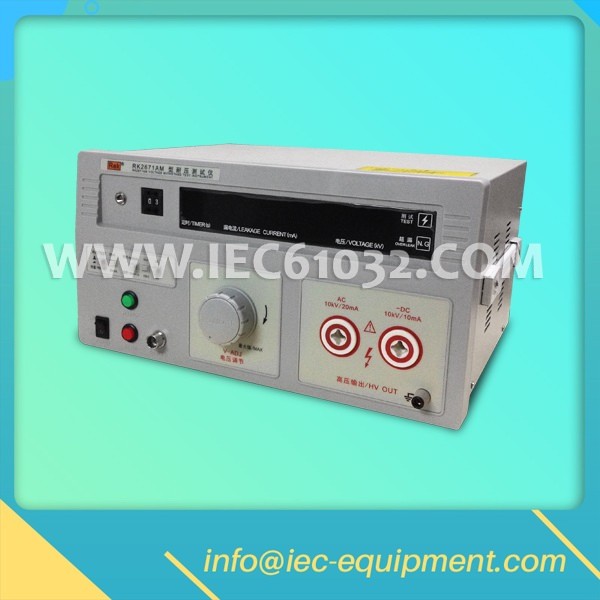

AC/DC:0-5/10KV, AC:20mA, DC:10mA Voltage Withstand Test Instrument

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Item No.: RK2671AM
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

AC/DC:0-5/10KV, AC:20mA, DC:10mA Voltage Withstand Test Instrument

Operation condition:
Environment Temperature: 0~40°C
Relative Humidity: ≤75%
Atmospheric Pressure: 101.25KPa

Technical Index:

Item	RK2671AM
Output Voltage Range (AC/DC)	0 ~ 5 KV / 10 KV
Voltage Resolution	10V
Voltage Accuracy	±5%
Leakage current (AC)	0-2/20mA
Leakage current (DC)	0-2/10mA
Current Resolution	0~2mA:1μA 2~20mA:10μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	200VA
Capacitor of Transformer	750VA
Display Form	LED Digital Display
Power Requirements	220V±10%, 50Hz±5%
Operation Environment	0℃~40℃, ≤85%RH
Dimensions	300370200mm
Weight	14kg

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go Not go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, iec test probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
