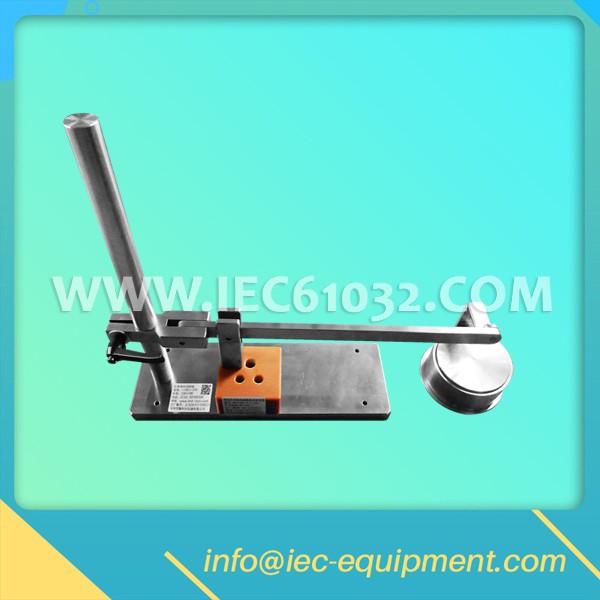

BS 1363 Figure 2 Apparatus for Mechanical Strength Test on Resilient Covers

BS 1363 Figure 2 Apparatus for Mechanical Strength Test on Resilient Covers

1.  Application:

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS 1363 standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

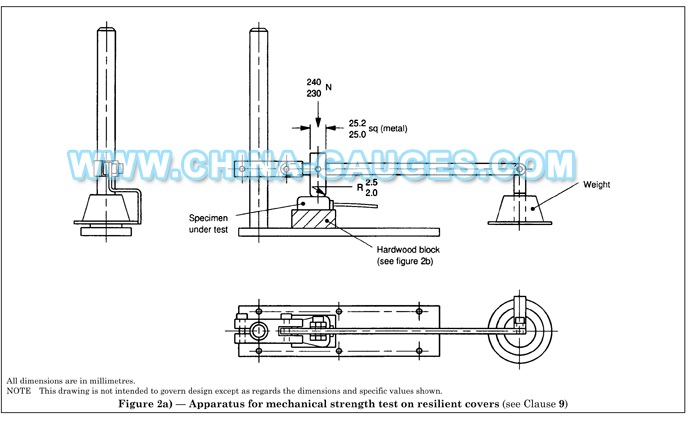

Figure 2a) — Apparatus for mechanical strength test on resilient covers

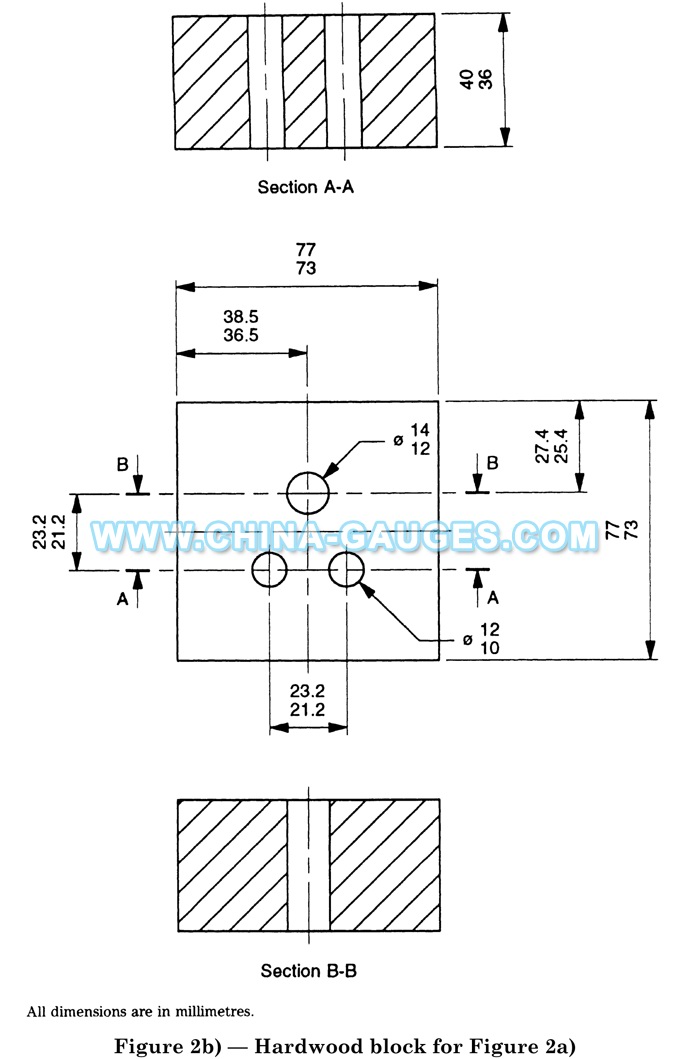

Figure 2b) — Hardwood block for Figure 2a)

NOTE This drawing is not intended to govern design except as regards the dimensions and specific values shown.

All dimensions are in millimetres.
