CEE 7 Socket-outlets and Plug Gauges

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard:
Item No.: LX-CEE7
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.


CEE 7 Socket-outlets and Plug Gauges


1.  Application:

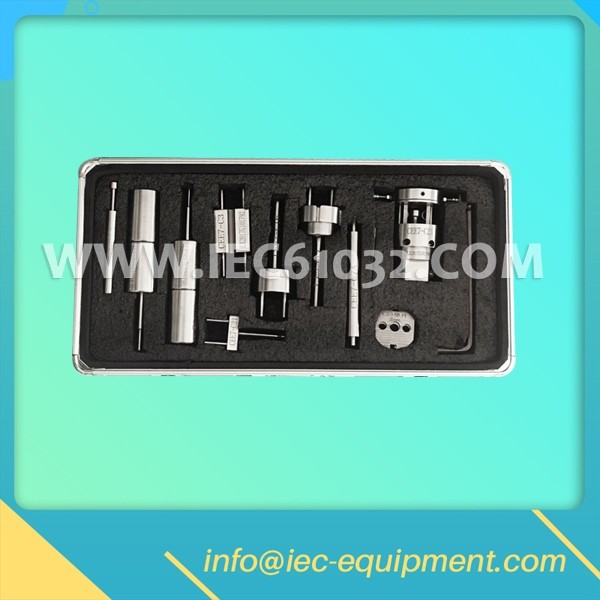

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to CEE7 ( CEE7/7 ) standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.


NO

Figure No.

 Description

1

CEE7/C1

10/16A 250V two-pole socket-outlets

Gauges c1 for size of entry holes for plug pins

2

CEE7/C2A.B

10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact

Gauges c2 for minimum opening of contact tubes

3

CEE7/C3

10/16A 250V two-pole socket-outlets

Gauge c3 for acceptance of two-pole plugs

4

CEE7/C4

10/16A 250V two-pole socket-outlets with side earthing-contacts

Gauge c4 for acceptance of two-pole plugs with siade earthing contacts

5

CEE7/C6A.B

10/16A 250V two-pole fixed socket-outlets

Gauges c6 for fixing holes or slots

6

CEE7/C7A.B.C.D

10/16A 250V two-pole socket-outlets

Gauges c7 for distance to point of first contact

7

CEE7/C8

10/16A 250V two-pole socket-outlets

Gauge c8 for wiring channel

8

CEE7/C9A.B

2.5A 250V and 10/16A250V two-pole piugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact

Gauges c9 for pin diameter

9

CEE7/C10A.B

10/16A 250Vtwo-pole plugs

Gauges c10 for pin spacing

10

CEE7/C11

10/16A 250V two-pole socket-outlets and two-pole piugs with pin-type earthing-contact

Gauge c11 for maximum opening of contact tubes

11

CEE7/C12

10/16A 250V two-pole plugs with side earthing-contacts

Gauge c12 for interchangeability

12

CEE7/C13

2.5A 250V two-pole plugs for class ii appliances

Gauge for interchangeability

13

CEE7/C14

10/16A 250V two-pole flush-type socket-outlets for screw fixing

Gauge for dimensions of mounting boxes

14

CEE7/C15

10/16A 250V two-pole plugs without earthing contact

Gauge for non-interchangeability with two-pole plugs with earthing contact

15

CEE7/C16

10/16A 250V two-pole socket-outlets with side earthing-contacts

Gauge for non-acceptance of two-pole plugs wihout earthing contact

16

CEE7/C18

10/16A 250V two-pole socket-outlets without earthing contact

Gauge for checking impossibility of single-pole insertion of plugs

17

CEE7/C19A.B.C

2.5A 250V and 10/16A 250V two-pole plugs

Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets

18

CEE7/C19a

2.5A 250V and 10/16A 250V two-pole plugs

Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets

19

CEE7/C20

Device for testing non-solid pins

20

CEE7/C21

Device for checking the resistance to lateral strain of 10/16A 250V two-pole fixed socket-outlets

21

CEE7/C22

Splash apparatus

22

CEE7/C23

Device for measuring the contact pressure of earthing contacts of 10/16A 250V two-pole socket-outlets with side earthing-contacts

23

CEE7/C24

Apparatus for breaking capacity and normal operation tests

24

CEE7/C25

Circuit diagrams for bresaking capacity and normal operation tests

25

CEE7/C26

Apparatus for chesking the withdrawal force

26

CEE7/C27

Apparatus for testing the cord anchorage

27

CEE7/C28

Apparatus for flexing test

28

CEE7/C29

Impact-test apparatus

29

CEE7/C30

Tumbling barrel

30

CEE7/C31

Apparatus for impact test at low temperature

31

CEE7/C32

Arrangement for compression test

32

CEE7/C33

Apparatus for abrasion test on insulating collars of plug pins

33

CEE7/C34

Ball-pressure apparatus

34

CEE7/C35

Apparatus for pressure test on plugs and portable socket-outlets

35

CEE7/C36

Hot mandrel apparatus

36

CEE7/C37

Arrangement and dimensions of the electrodes for the tracking test
