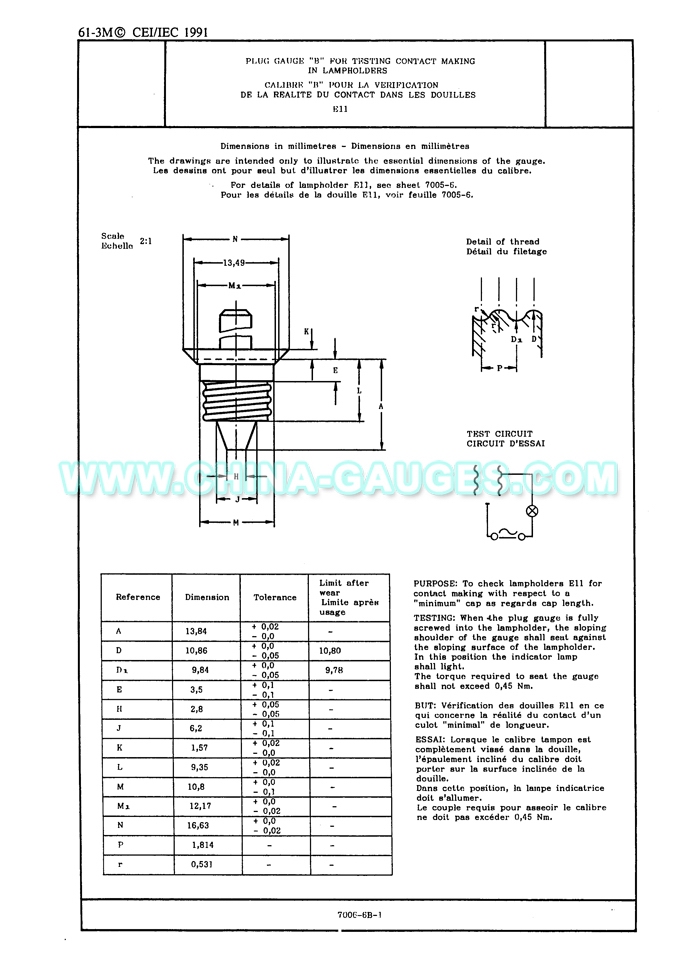

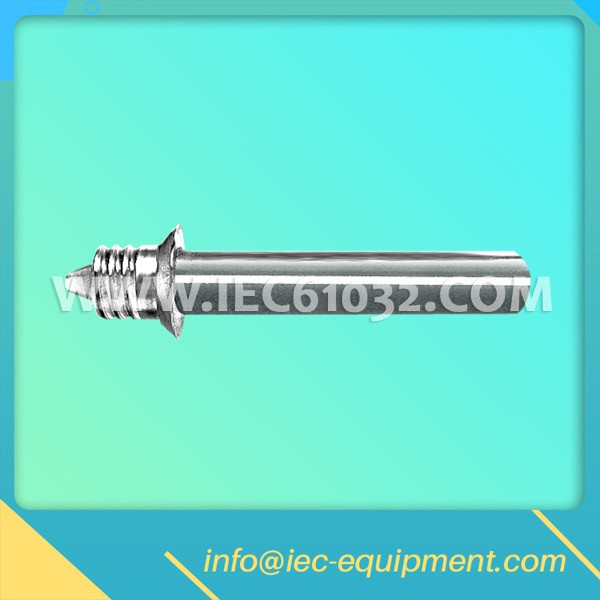

E11 Plug Gauge B for Testing Contact Making in Lampholders 7006-6B-1

E11 Plug Gauge B for Testing Contact Making in Lampholders 7006-6B-1

PURPOSE: To check lampholders E11 for contact making with respect to a "minimum" cap as regards cap length.

TESTING: When the plug gauge is fully screwed tinto the lampholder, the sloping shoulder of the gauge shall seat against the sloping suface of the lampholder.

In this position the indicator lamp shall light.

The torque required to seat the gauge shall not exceed 0,45 Nm.
