IEC60598-1 Test Chain

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60598-1
Item No.: LX-TC25
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

Standards: IEC60598-1 clause 4.26.3

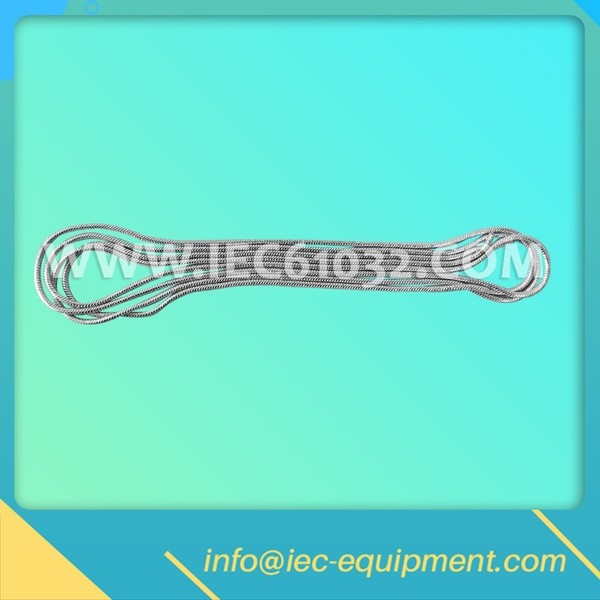

Chain Length: 1.30 meters

Chain Diameter: 2 mm

Resistance: 2.5Ω/m±20%

Purpose: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.

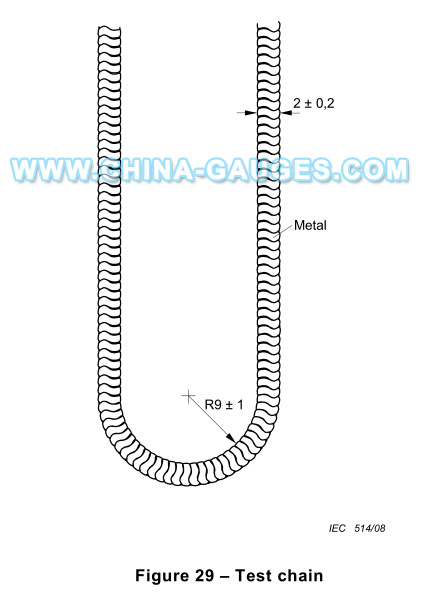

Test chain of sufficient length of an uncoated metal, having links in accordance with IEC60598 Figure 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.

NOTE: The resistance value of the test chain should be checked before each measurement.
