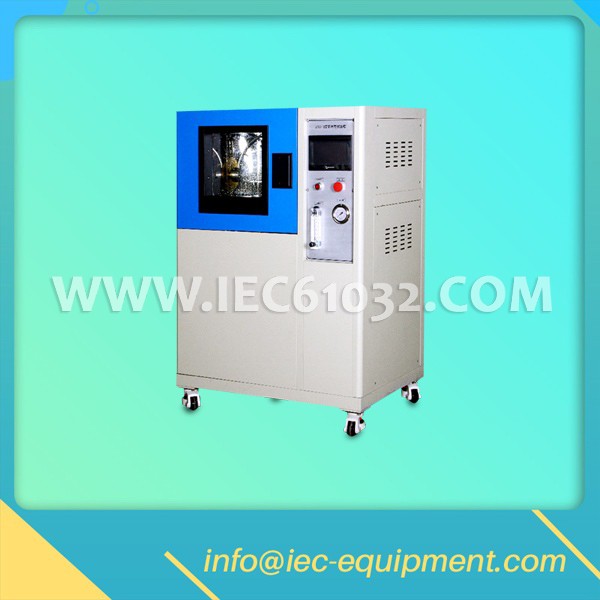

IPX3 - IPX4 Oscillating Tube Test Chamber

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC60529
Item No.: LX-IPX34B
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.


Product Specifications:

For measuring and testing the torque strain exerted by appliances with plug pins on socket-outlets, in accordance with IEC 60065 clause15.4.1 and figure 11, IEC 60335-1 clause 22.3, IEC 60884-1 clause 14.23.2.


The balancing arm of the test apparatus pivots about a horizontal axis through the center lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.



Test standard:

IPX3-4 Oscillating Tube Test Chamber is designed according to the relevant standard requirements of IEC60529 clause14.2.3, 14.2.4 and figure 4.



Application:

The main role of IPX3/4 Oscillating Tube Test Chamber is to test products storage, transport and use in the rain climate environment. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products.


After the test, to determine the performance of the product through the identification is able to meet the requirements, in order for use of the product design, improvement, identification and factory inspection.



Features:

1. It' s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

2. IPX3/4 Oscillating Tube Test Chamber for the chamber type, it is suitable for the small and light specimen, if you specimen is large and heavy, you can consider our separate type.

3. The inner chamber and swivel table is made of high quality Aluminum Alloy and SUS304 stainless steel plate, to ensure the long time use does not rust.

4. Adopt large transparent window, inner chamber with LED lamp of waterproof to observe testing samples conditions.

5. Samples power-off time can be set, power 0-999M, off 0-999M.

6. Touch control functions:

A) IPX3 test, according to the standard terms of IPX3 test conditions;

B) IPX4 test, according to the standard terms of IPX4 test conditions;

C) Custom settings, The test was conducted according to user needs, you can set the test time, swing pipe angle, swing pipe speed, and the speed of the swivel table.

7. The panel is provided with a flow meter and pressure gauge, you can visually adjust the flow at the meter.

8. Test time can be set 0-999M adjustable.

9. Use Panasonic PLC, 7-inch touch screen test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel paint.

10. High precision filter can effectively filter impurities in tap water, to prevent clogging of the needle tip.

11. Bottom seat is equipped with four activities with brake casters for easy mobility.


Specifications:

No.

Item

LX-ipx34B-R200

LX-IPX34B-R400

LX-IPX34B-R600

1

Swing Pipe Radius (mm)

R200

R400

R600

2

Internal Size (mm)

L500*D500*H500

L900*D900*H900

L1300*D1300*H1300

3

Exterior Dimensions (mm)

L1000*D680*H1440

L1400*D1080*H1900

L1740*D1480*H1950

4

Flow (L/mm)

0-1L/min

0-2L/min

0-3 L/min

5

Swivel Table Diameter (mm)

Φ 200

Φ 400

Φ 600

6

Swivel TableUp-downAdjustingRange

150 ~250 mm

350 ~600 mm

550 ~1000 mm

7

Nozzle Diameter (mm)

0.4

8

Swing Pipe Inner Size (mm)

15

9

Swing Pipe Angle

120° (IPX3), 350° (IPX4) and Adjustable

10

Swing Pipe Speed

120°for 4S, 360°for 12S and Adjustable

11

Swing Pipe Material

SUS304 stainless steel

12

Swivel Table Speed

1-5 r/min Adjustable

13

Protection Function

No water, leakage, and short circuit

14

Power Supply

220V

15

Power

1 KW

16

According to

IEC60529:1989+A1:1999 (IPX3, IPX4)


Note:

LX-IPX34B-R400 Can Add Radius200 mmof Swing Pipe; LX-IPX34B-R600 Can Add Radius200 mmand400 mmof Swing Pipe;

LX-IPX34B-R400 Can Add Diameter 200 mmof Swivel Table; LX-IPX34B-R600 Can Add Diameter 200 mmand400 mmof Swivel Table.
