Test Pin of IEC 60601-1 Figure 8

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard: IEC 60601-1
Item No.: LX-1213
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.


test pin of IEC 60601-1 Figure 8



This test probe Pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).


Conforms to:

Standard IEC 60601-1, IEC 61032, IEC 60065, IEC 60335-1, IEC 60950, IEC 60745 and UL etc.

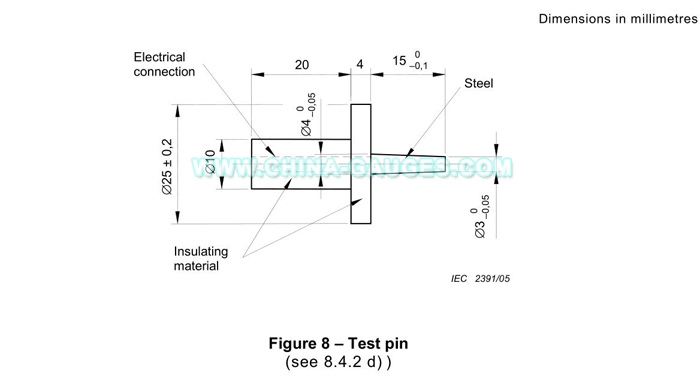

Technical Parameter:

Test probe diameter:3 mm

Test probe length:15 mm

Baffle plate thickness:4 mm

Baffle plate diameter:25 mm

Handle length:20 mm

Handle diameter:10 mm
