UL 498 2012 Plugs and Receptacles Gauges

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard:
Item No.: LX-UL498
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.

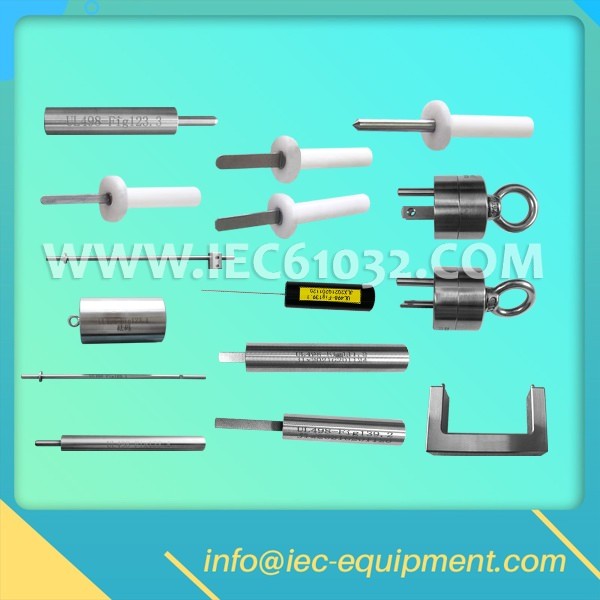

UL 498 : 2012 Plugs and Receptacles Gauges


1.  Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.


3.Specifications:

Item Figure No. Describe Quantity
1 UL498-2012   Figure 9.1 Articulate   probe with web stop 1
2 UL498-2012   Figure 10.1 Probe 1
3 UL498-2012   Figure 31.1 Flat   probe 1
4 UL498-2012   Figure 73.1 Reference   plug 1
5 UL498-2012   Figure 73.2 Typical   test apparatus 1
6 UL498-2012   Figure 98.1 Improper   insertion test blades 2
7 UL498-2012   Figure 109.1 Test   plug 2
8 UL498-2012   Figure 109.2 Test   blade 1
9 UL498-2012   Figure 122.1 Receptacle   test fixture 1
10 UL498-2012   Figure 122.3 Push   out tool 1
11 UL498-2012   Figure 122.5 Bridge 1
12 UL498-2012   Figure 123.1 Test   pin A 1
13 UL498-2012   Figure 123.2 Test   pin B 1
14 UL498-2012   Figure 123.3 57g   ground pin 1
15 UL498-2012   Figure 123.4 113g   ground pin 1
16 UL498-2012   Figure 133.2 No.14AWG   test pin 1
17 UL498-2012   Figure 136.1 Small   test probe 1
18 UL498-2012   Figure 165.2 Fixture   for assembly security test 1
19 UL498-2012   Figure SD 5.1 Standard   grounding pin 1
20 UL498-2012   Figure SD 13.1 Standard   grounding pin 1
21 UL498-2012   Figure SD 13.2 Over   size ground pin 1
