EN 60350-2:2013 Standardised Cookware


Application:

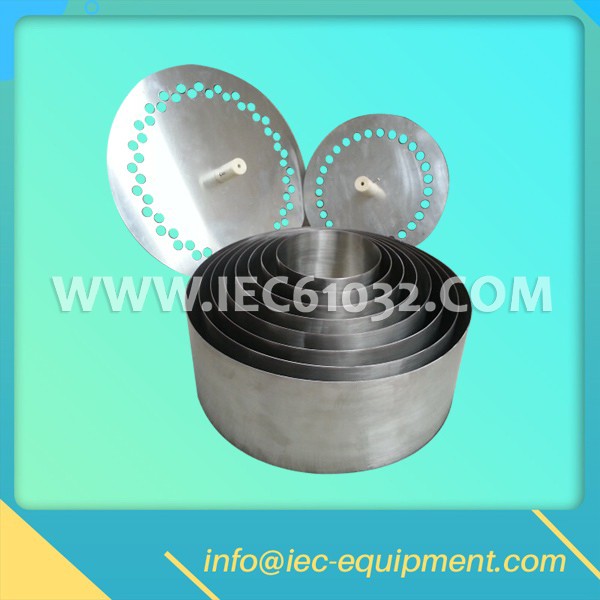

The Standardised Cookware (Stainless Steel Pans) according to EN 60350-2:2013 requirements, mainly used to assess the energy efficiency of electromagnetic cooker test cookware.


Technical Parameters:

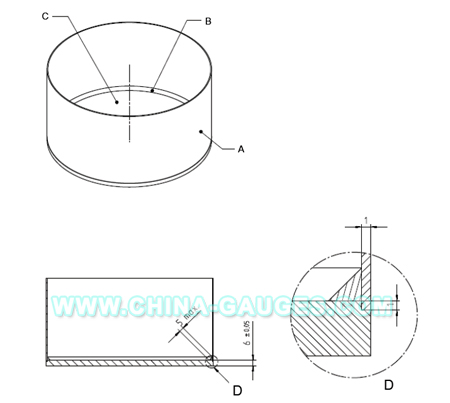

a) The Standardised Cookware bottom material is made of 1.4016 stainless steel, bottom thickness size is 6 mm ± 0.05 mm, bottom cannot be protrude outwards.

b) The Standardised Cookware walls material is made of 1.4301 stainless steel, walls thickness is 1 mm ± 0.05 mm, It does not have a handle and a protruding cylinder.

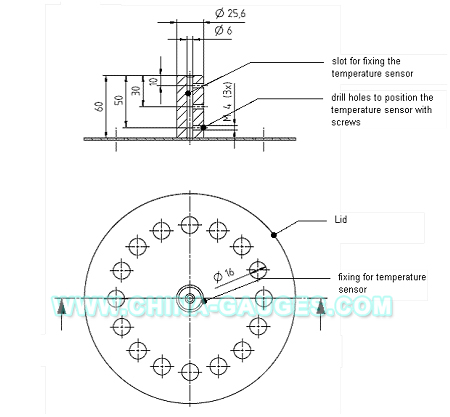

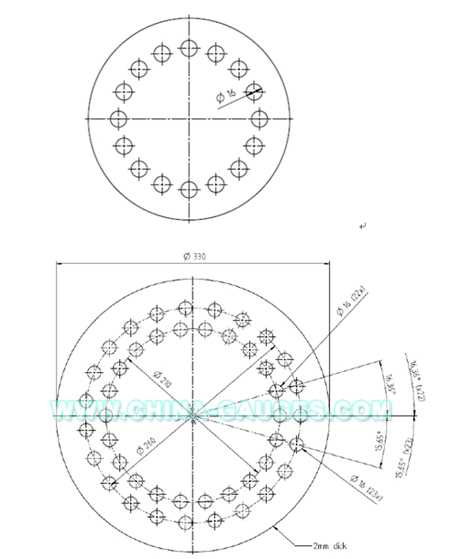

c) The Standardised Cookware lid material is made of aluminum, lid thickness is 2 mm ± 0.05 mm, diameter of each hole in the lid is 16 mm ± 0.1 mm, and holes are evenly distributed on the hole ring.

d) A fixture with a temperature sensor at the center of the lid, its material is plastic.



Specification:

Diameter  of the cookware bottom (outside)


mm

Diameter of the  lid


mm

Lid hole circle  diameter


mm

Number of holes  on the circle

Total cookware  height (outside)


mm

Flatness of  cookware bottom


mm

Water load


g

Cooking zone  size category


mm

Standardised  cookware categories
120 ± 0,5 130 ± 1 80  ± 1 7 125  ± 0,5

≥  0

< 0,075

650

≥  100

< 130

A
150 ± 0,5 165  ± 1 110  ± 1 11 125  ± 0,5

≥  0

< 0,075

1030

≥  130

< 160

180 ± 0,5 200  ± 1 140 ± 1 16 125  ± 0,5

≥  0

< 0,075

1500

≥  160

< 190

B
210 ± 0,5 230 ± 1 170  ± 1 22 125  ± 0,5

≥  0

< 0,1

2050

≥  190

< 220

C
240 ± 0,5 265  ± 1 200 ± 1 29 125  ± 0,5

≥  0

< 0,1

2700

≥  220

< 250

270 ± 0,5 300  ± 1 230/210  a ± 1 18/18  a 125  ± 0,5

≥  0

< 0,15

3420

≥  250

< 280

D
300 ± 0,5 330 ± 1 260/210  a ± 1 23/22  a 125  ± 0,5

≥  0

< 0,15

4240

≥  280

< 310

330 ± 0,5 365  ± 1 290/270 a ± 1 27/27  a 125  ± 0,5

≥  0

< 0,15

5140

≥  310

≤ 330

a Number of holes are arranged on two hole  circles.
