Vessel for Testing Induction Hotplates of IEC 60335-2-9:2019 Figure 104

Measurement & Analysis Instruments > Safety Instrument
Product Type: Testing Equipment
Standard:
Item No.: LX-DT05
Include CNAS & ILAC Calibration Certificate
E-mail: info@iec-equipment.com
Made in China
Please contact us for more detailed pdf files.


Vessel for Testing Induction Hotplates of IEC 60335-2-9:2019 Figure 104


Main parameter:

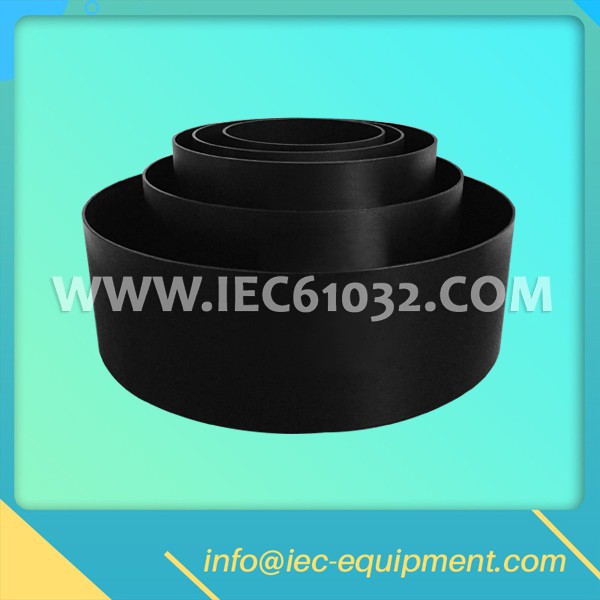

one set with 5 pcs, the diameter is: 110 mm, 145mm, 180mm, 220mm, 300mm


Base and wall thickness: 2mm±0.5mm


The vessel is made of low carbon steel having maximum carbon content of 0.08%

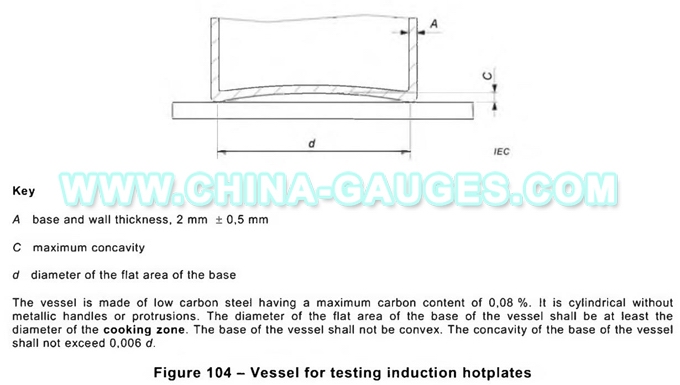

NOTE: The vessel is made of low carbon steel having a maximum carbon content of 0,08 %. It is cylindrical without metallic handles or protrusions. The diameter of the flat area of the base of the vessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the vessel is 0,006 d. The base of the vessel is not to be convex.


Vessel for testing induction hotplates ( IEC60335-2-9 clause 3 figure 104)

Diameter of cooking zone(mm)

Approximate Dimension

Diameter (mm)

Wall highly (mm)

Bottom thickness (mm)

Wall thickness (mm)

≤110

110

140

8

2

>110≤145

145

140

8

2

>145≤180

180

140

9

2

>180≤220

220

120

10

2

>220≤300

300

100

10

2
